Sale!

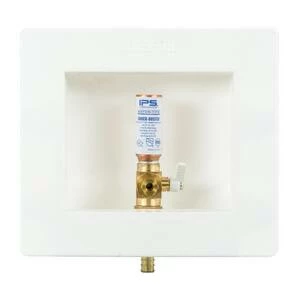

Discount 💯 Water-Tite 8-1/4 in x 7-5/16 in x 3-1/2 in Ice Maker Brass PEX connection Supply Box 👏

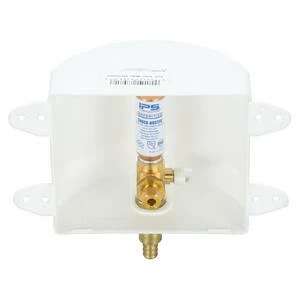

Discount 💯 Water-Tite 8-1/4 in x 7-5/16 in x 3-1/2 in Ice Maker Brass PEX connection Supply Box 👏 - Image 2

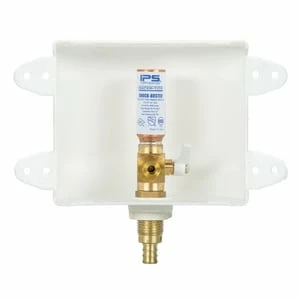

Discount 💯 Water-Tite 8-1/4 in x 7-5/16 in x 3-1/2 in Ice Maker Brass PEX connection Supply Box 👏 - Image 3

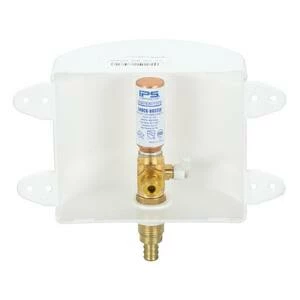

Discount 💯 Water-Tite 8-1/4 in x 7-5/16 in x 3-1/2 in Ice Maker Brass PEX connection Supply Box 👏 - Image 4

Discount 💯 Water-Tite 8-1/4 in x 7-5/16 in x 3-1/2 in Ice Maker Brass PEX connection Supply Box 👏

Original price was: $193.33.Current price is: $91.99.

SKU: 3916317 Category: Supply Boxes Tag: Plastic

Safe Payments for a Better Shopping Experience
Shop with confidence, enjoy free returns.
Buy Quality, Live Better
Peace of Mind with Every Purchase

Icemaker outlet box with one-piece box-and-flange design

Requires no additional support framing

Contoured box design allows easy valve access

Pre-installed lead-free brass valve with hammer arrester; complies with NSF 61-G requirements

Snap-on faceplate measures 8-1/4 wide by 7-5/16 inches high; accommodates up to 3/4-inch drywall

Rough opening of 5-3/4 Inch width x 3-1/2 Inch depth x 4-7/8 Inch height

Product covered by one or more of the following patents D411870, D471960

ANSI Specifications	ANSI 372G
IAPMO Listed	Yes
Weight	1
Water Hammer Arrestor Included	Yes
UL Listed	No
Type	Square
Supply Box Type	Ice Maker
Supply Box Connection Type	F1807 PEX
Overall Box Size	8-1/4 in x 7-5/16 in x 3-1/2 in
NSF Specifications	ANSI 372G
NSF Certified	Yes
Material	Plastic
Lead Law Compliant	Yes
Height	4 in
ASME Specifications	ASME A112.18.1
Fitting Sizes	1/4 in x 1/2 in
Fitting Size 2	1/2 in
Fitting Size 1	1/4 in
Fire Rated	No
End Connections	Barbed
End Connection 2	Barbed
End Connection 1	Barbed
CARB OTC LEED Compliant	No
Box Material	Plastic
Application	Icemaker
ASSE Standards	ASSE 1010 2004
Width	8 in
