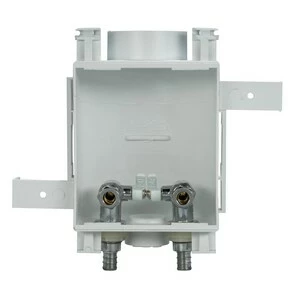

Outlet 🔔 Water-Tite MultiBox™ 7 in x 4-1/4 in x 3-1/16 in Washing Machine Brass PEX connection Supply Box 🧨

Original price was: $185.48.Current price is: $94.99.

SKU: 5172265 Category: Supply Boxes Tag: Plastic

Safe Payments for a Better Shopping Experience
Shop with confidence, enjoy free returns.
Buy Quality, Live Better
Peace of Mind with Every Purchase

Angle stop outlet box with 2 pre-installed valves; ETL Certified

Integrated mounting flanges for easy installation

Durable forged-brass quarter-turn valves with anti-rotational design; lead free and compliant with NSF 61-G requirements

Top and bottom stabilizer-bar slots and nail slots for optional extra support

Snap-on faceplate fits all MultiBox outlet boxes and includes built-in cable tie bosses to secure the drain hose; measures 6-1/2 inches wide by 6-7/8 inches high

All faceplates fit up to two sheets of 5/8 Inch drywall

MultiBox dishwasher/commercial ice maker boxes can be inverted to utilize the 2 Inch drain

Standard and deep faceplates include cable tie bosses to secure drain hose

ANSI Specifications	ANSI 372
IAPMO Listed	Yes
Weight	1
Water Hammer Arrestor Included	No
UL Listed	No
Type	I83189
Supply Box Type	Washing Machine
Supply Box Connection Type	F1807 PEX
Overall Box Size	7 in x 4-1/4 in x 3-1/16 in
Outlet Type	Compression
NSF Specifications	NSF 61
NSF Certified	Yes
Material Type	PVC
Material	Plastic
Length	4-1/2 in
Height	5 in
ASME Specifications	ASME A112.18.1
GSA Approved	No
Fitting Sizes	3/8 in
Fitting Size 2	3/8 in
Fitting Size 1	3/8 in
Fire Rated	Yes
FM Approved	No
End Connections	Barbed
End Connection 2	Barbed
End Connection 1	Barbed
Collection	MultiBox™
CSA Certified	CSA B125.1‐05
CARB OTC LEED Compliant	No
Box Material	Fire Rated Plastic
Width	8 in
